| Product Description: | Applications: | ||||||||
| ■Tinned,annealed,stranded or solid copper conductor. | ■Pipe-heating cable where the acceptability of the | ||||||||
| ■PUR OR TPE insulation | combination is to be determined by Underwriters | ||||||||
| ■PUR OR TPE jacketed | Laboratories Inc. | ||||||||
| ■Tinned or bare copper wire spiral or braid shield | 應用： | ||||||||
| ■Rated temperature:90℃.Rated voltage:120V,240V 300Volts | ■管加熱電纜在可接受的組合來確定保險商實驗室有限公司 | ||||||||
| ■Passes UL VW-1&CUL FT1 vertical flame test | Construction: | ||||||||
| 說明： | 構造： | ||||||||
| ■導體使用單股或絞線裸銅或鍍錫銅。 | |||||||||
| ■PUR TPE絕緣 | |||||||||
| ■PUR或者TPE被覆 | |||||||||
| ■裸銅或鍍錫銅絲，纏繞或編織屏蔽 | |||||||||
| ■額定溫度：90℃額定電壓：120V 240V 300Volts | |||||||||
| ■可通過UL VW-1 及 CUL FT1 ，垂直燃燒測試 | |||||||||
| UL Style& CUL Type | Cores | Conductor |
Insulation Thickness |
Nom.Dia | Shield Coverage | Jacket Thickness |
Overall Diameter |
Conductor Resistance at 20℃ |
|
| AWG | No/mm | mm | mm | % | mm | mm | Ω/KM | ||
|
UL20152 CUL （Stranded) |
2C | 20 | 21/0.178 | 0.33 | 1.70 | >=65 | 0.51 | 5.90 | 36.70 |
| 18 | 34/0.178 | 0.33 | 2.00 | >=65 | 0.51 | 6.40 | 23.20 | ||
| 16 | 26/0.25 | 0.33 | 2.20 | >=65 | 0.51 | 7.00 | 14.60 | ||
| 14 | 41/0.25 | 0.33 | 2.50 | >=65 | 0.51 | 7.80 | 8.96 | ||
|
UL20152 CUL （Stranded) |
3C | 20 | 21/0.178 | 0.33 | 2.00 | >=65 | 0.51 | 6.20 | 36.70 |
| 18 | 34/0.178 | 0.33 | 2.20 | >=65 | 0.51 | 6.80 | 23.20 | ||
| 16 | 26/0.25 | 0.33 | 2.50 | >=65 | 0.51 | 7.40 | 14.60 | ||
| 14 | 41/0.25 | 0.33 | 2.90 | >=65 | 0.51 | 8.40 | 8.96 | ||
| 以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權歸穩暢電子制品有限公司所有。 | |||||||||

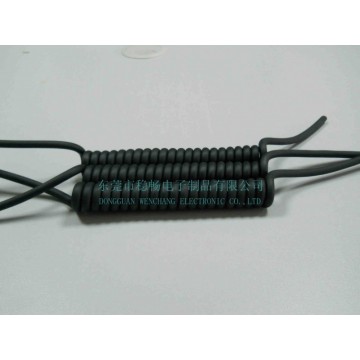

點擊圖片查看原圖
