Product Description:
|
|
■Tinned ,annealed,stranded or solid copper conductor.
|
|
■PVC/SR-PVC/PP/TPU/XL-PE insulation.
|
|
■TPU jacketed.
|
|
■Rated temperature:60℃.Rated voltage:30volts
|
|
■Uniform thickness of wire to ensure easy stripping and cutting.
|
|
■Passes UL VW-1&CUL FT1/FT2 vertical flamt test
|
|
■Tinned or bare copper winding or woven isolation.
|
|
■A collection of cores can be isolated tissue-paper package.aluminum foil or mylar.
|
|
■Executive Standard:UL758 UL1581 CSA22.2.
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅
|
|
■PVC/SR-PVC/PP/TPU/XL-PE絕緣。
|
|
■TPU外覆。
|
|
■額定溫度：60℃額定電壓：30Volts
|
|
■使用標準厚度，易剝，截?cái)嗳菀住?/span>
|
|
■可通過ULVW-1及CUL FT1/FT2，垂直燃燒測試。
|
|
■鍍錫或裸銅或編織隔離。
|
|
■芯線集合可包鋁箔麥拉或棉紙隔離。
|
|
■執行標準:UL758 UL1581 CSA22.2.
|
|
Applications:
|
|
■For internal wiring of computer,audio&video equipment.
|
|
應用：
|
|
■用于電腦及視聽設備內部連線.
|
UL Style
&CSA Type
|
Conductor Cores
導體芯數
|
Conductor
導體
|
Insulation
Thickness
絕緣厚度
|
Nom.Dia
絕緣線徑
|
Jacket Thickness
被覆厚度
|
Overall
Diameter
完成外徑
|
Conductor
Resistance at 20℃導體電阻
|
|
線號
|
線數/線徑
|
|
AWG
|
No/mm
|
mm
|
mm
|
mm
|
mm
|
Ω/KM
|
UL20197
（Stranded)
絞線
|
2C
|
30
|
7/0.10
|
0.25
|
0.80
|
0.8
|
3.40
|
381.00
|
|
28
|
7/0.127
|
0.90
|
3.60
|
239.00
|
|
26
|
7/0.16
|
1.00
|
3.90
|
150.00
|
|
24
|
11/0.16
|
1.10
|
4.10
|
94.20
|
|
22
|
17/0.16
|
1.30
|
4.60
|
59.40
|
|
20
|
21/0.178
|
1.50
|
5.00
|
36.70
|
|
18
|
34/0.178
|
1.80
|
5.60
|
23.20
|
|
3C
|
30
|
7/0.10
|
0.25
|
0.80
|
0.8
|
3.70
|
381.00
|
|
28
|
7/0.127
|
0.90
|
4.00
|
239.00
|
|
26
|
7/0.16
|
1.00
|
4.20
|
150.00
|
|
24
|
11/0.16
|
1.10
|
4.50
|
94.20
|
|
22
|
17/0.16
|
1.30
|
4.80
|
59.40
|
|
20
|
21/0.178
|
1.50
|
5.30
|
36.70
|
|
18
|
34/0.178
|
1.80
|
6.00
|
23.20
|
|
4C
|
30
|
7/0.10
|
0.25
|
0.80
|
0.8
|
4.30
|
381.00
|
|
28
|
7/0.127
|
0.90
|
4.60
|
239.00
|
|
26
|
7/0.16
|
1.00
|
4.80
|
150.00
|
|
24
|
11/0.16
|
1.10
|
5.10
|
94.20
|
|
22
|
17/0.16
|
1.30
|
5.50
|
59.40
|
|
20
|
21/0.178
|
1.50
|
6.10
|
36.70
|
|
18
|
34/0.178
|
1.80
|
6.80
|
23.20
|
|
5C
|
30
|
7/0.10
|
0.25
|
0.80
|
0.8
|
4.50
|
381.00
|
|
28
|
7/0.127
|
0.90
|
4.90
|
239.00
|
|
26
|
7/0.16
|
1.00
|
5.20
|
150.00
|
|
24
|
11/0.16
|
1.10
|
5.40
|
94.20
|
|
22
|
17/0.16
|
1.30
|
6.00
|
59.40
|
|
20
|
21/0.178
|
1.50
|
6.70
|
36.70
|
|
18
|
34/0.178
|
1.80
|
7.40
|
23.20
|
|
6C
|
30
|
7/0.10
|
0.25
|
0.80
|
0.8
|
4.90
|
381.00
|
|
28
|
7/0.127
|
0.90
|
5.30
|
239.00
|
|
26
|
7/0.16
|
1.00
|
5.60
|
150.00
|
|
24
|
11/0.16
|
1.10
|
6.00
|
94.20
|
|
22
|
17/0.16
|
1.30
|
6.40
|
59.40
|
|
20
|
21/0.178
|
1.50
|
7.00
|
36.70
|
|
18
|
34/0.178
|
1.80
|
7.90
|
23.20
|
|
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權歸穩暢電子制品有限公司所有
|

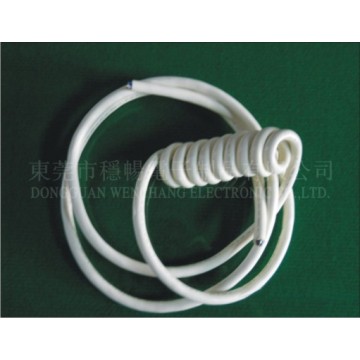

點擊圖片查看原圖
