| Product Description: | ||||||||
| ■Tinned ,annealed,stranded or solid copper conductor. | ||||||||
| ■Color -coded PVC insulation，and PUR jacket. | ||||||||
| ■Rated temperature:80℃.Rated voltage:600volts | ||||||||
| ■Uniform thickness of wire to ensure easy stripping and cutting. | ||||||||
| ■Passes UL VW-1&CUL FT1 vertical flamt test | ||||||||
| ■Top coated conductor is avaiable | ||||||||
| ■Jacket thickness:15mils | ||||||||
| 說明： | ||||||||
| ■導體使用單股或絞線裸銅或鍍錫銅 | ||||||||
| ■PVC 絕緣,PUR被覆。 | ||||||||
| ■額定溫度：80℃額定電壓：600Volts | ||||||||
| ■使用標準厚度，易剝，截斷容易。 | ||||||||
| ■可通過UL VW-1 及 CUL FT1 ，垂直燃燒測試 | ||||||||
| ■可使用先絞后鍍（TC）為導體 | ||||||||
| ■被覆體厚度：15mils | ||||||||
| Applications: | ||||||||
| ■For general purpose internal wiring of electronic and electrical equipment. | ||||||||
| 應用： | ||||||||
| ■用于電子、電器設備內部配線 | ||||||||
| UL Style& CUL Type |
Conductor 導體 |
Insulation Thickness 絕緣厚度 |
Jacket Thickness 絕緣厚度 |
Overall Diameter 完成外徑 |
Stand Put-up 標準長度 |
Conductor Resistance at 20℃導體電阻 |
||
| 線號 | 線數/線徑 | 英制 | 公制 | |||||
| AWG | No/mm | mm | mm | mm | Ft/coil | M/Coil | Ω/KM | |
|
UL10857 （Stranded) 絞線 |
26 | 7/0.16 | 0.23 | 0.38 | 1.80 | 1000 | 305 | 150.00 |
| 24 | 11/0.16 | 0.23 | 0.38 | 1.90 | 1000 | 305 | 94.20 | |
| 22 | 17/0.16 | 0.23 | 0.38 | 2.10 | 1000 | 305 | 59.40 | |
| 20 | 21/0.178 | 0.23 | 0.38 | 2.30 | 1000 | 305 | 36.70 | |
| 18 | 34/0.178 | 0.23 | 0.38 | 2.50 | 1000 | 305 | 23.20 | |
| 16 | 26/0.25 | 0.23 | 0.38 | 2.60 | 1000 | 305 | 14.60 | |
|
UL10857 （Top-coated) 先絞后鍍 |
28 | 7/0.127 | 0.23 | 0.38 | 1.60 | 1000 | 305 | 248.00 |
| 26 | 7/0.16 | 0.23 | 0.38 | 1.80 | 1000 | 305 | 150.00 | |
| 24 | 7/0.20 | 0.23 | 0.38 | 1.90 | 1000 | 305 | 88.70 | |
| 22 | 7/0.254 | 0.23 | 0.38 | 2.20 | 1000 | 305 | 54.70 | |
| 20 | 7/0.32 | 0.23 | 0.38 | 2.40 | 1000 | 305 | 37.10 | |
|
UL10857 （Solid) 單股 |
26 | 1/0.404 | 0.23 | 0.38 | 1.80 | 1000 | 305 | 143.00 |
| 24 | 1/0.511 | 0.23 | 0.38 | 2.20 | 1000 | 305 | 89.30 | |
| 22 | 1/0.634 | 0.23 | 0.38 | 2.30 | 1000 | 305 | 56.40 | |
| 20 | 1/0.813 | 0.23 | 0.38 | 2.40 | 1000 | 305 | 35.20 | |
| 18 | 1/1.024 | 0.23 | 0.38 | 2.50 | 1000 | 305 | 22.20 | |
| 以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權歸穩暢電子制品有限公司所有 | ||||||||

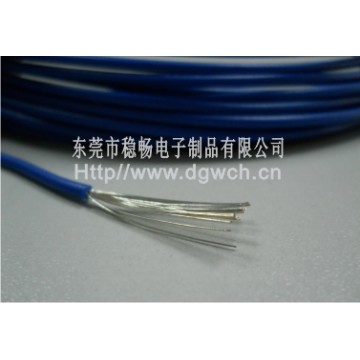

點擊圖片查看原圖
