Product Description:
|
|
■Tinned,annealed,stranded or solid copper conductor.
|
|
■PP,PE or FR-PE insulation
|
|
■PUR jacketed
|
|
■Tinned or bare copper wire spiral or braid shield
|
|
■Rated temperature:60℃.Rated voltage:90Voltage
|
|
■Passes UL VW-1&CUL FT1 vertical flame test
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅。
|
|
■PP PE 或者FR-PE絕緣
|
|
■PUR被覆
|
|
■裸銅或鍍錫銅絲，纏繞或編織屏蔽
|
|
■額定溫度：60℃額定90V電壓：
|
|
■可通過UL VW-1 及 CUL FT1 ，垂直燃燒測試
|
|
Applications:
|
|
■Internal wiring or external interconnection of electronic equipment.
|
|
應用：
|
|
■用于電子設備內部布線或外部連接。
|
|
UL Style& CUL Type
|
Cores
|
Conductor
|
Insulation
Thickness
|
Nom.Dia
|
Shield Coverage
|
Jacket Thickness
|
Overall
Diameter
|
Conductor
Resistance at 20℃
|
|
AWG
|
No/mm
|
mm
|
mm
|
%
|
mm
|
mm
|
Ω/KM
|
UL21322
CUL
（Stranded)
|
2C
|
30
|
7/0.100
|
0.23
|
0.80
|
>=65
|
0.38
|
3.40
|
381.00
|
|
28
|
7/0.127
|
0.23
|
0.90
|
>=65
|
0.38
|
3.70
|
239.00
|
|
26
|
7/0.16
|
0.23
|
1.00
|
>=65
|
0.38
|
3.80
|
150.00
|
|
24
|
11/0.16
|
0.23
|
1.10
|
>=65
|
0.38
|
4.00
|
94.20
|
|
22
|
17/0.16
|
0.23
|
1.30
|
>=65
|
0.38
|
4.40
|
59.40
|
|
20
|
21/0.178
|
0.23
|
1.50
|
>=65
|
0.38
|
4.80
|
36.70
|
|
18
|
34/0.178
|
0.23
|
1.80
|
>=65
|
0.38
|
5.40
|
23.20
|
|
16
|
26/0.25
|
0.23
|
2.00
|
>=65
|
0.38
|
7.60
|
14.60
|
|
3C
|
30
|
7/0.100
|
0.23
|
0.80
|
>=65
|
0.38
|
5.30
|
381.00
|
|
28
|
7/0.127
|
0.23
|
0.90
|
>=65
|
0.38
|
5.50
|
239.00
|
|
26
|
7/0.16
|
0.23
|
1.00
|
>=65
|
0.38
|
5.70
|
150.00
|
|
24
|
11/0.16
|
0.23
|
1.10
|
>=65
|
0.38
|
5.90
|
94.20
|
|
22
|
17/0.16
|
0.23
|
1.30
|
>=65
|
0.38
|
6.30
|
59.40
|
|
20
|
21/0.178
|
0.23
|
1.50
|
>=65
|
0.38
|
6.80
|
36.70
|
|
18
|
34/0.178
|
0.23
|
1.80
|
>=65
|
0.38
|
7.40
|
23.20
|
|
4C
|
30
|
7/0.100
|
0.23
|
0.80
|
>=65
|
0.38
|
5.50
|
381.00
|
|
28
|
7/0.127
|
0.23
|
0.90
|
>=65
|
0.38
|
5.70
|
239.00
|
|
26
|
7/0.16
|
0.23
|
1.00
|
>=65
|
0.38
|
6.00
|
150.00
|
|
24
|
11/0.16
|
0.23
|
1.10
|
>=65
|
0.38
|
6.30
|
94.20
|
|
22
|
17/0.16
|
0.23
|
1.30
|
>=65
|
0.38
|
6.70
|
59.40
|
|
20
|
21/0.178
|
0.23
|
1.50
|
>=65
|
0.38
|
8.20
|
36.70
|
|
5C
|
30
|
7/0.100
|
0.23
|
0.80
|
>=65
|
0.38
|
5.80
|
381.00
|
|
28
|
7/0.127
|
0.23
|
0.90
|
>=65
|
0.38
|
6.10
|
239.00
|
|
26
|
7/0.16
|
0.23
|
1.00
|
>=65
|
0.38
|
6.20
|
150.00
|
|
24
|
11/0.16
|
0.23
|
1.10
|
>=65
|
0.38
|
6.70
|
94.20
|
|
22
|
17/0.16
|
0.23
|
1.30
|
>=65
|
0.38
|
7.20
|
59.40
|
|
6C
|
30
|
7/0.100
|
0.23
|
0.80
|
>=65
|
0.38
|
6.20
|
381.00
|
|
28
|
7/0.127
|
0.23
|
0.90
|
>=65
|
0.38
|
6.50
|
239.00
|
|
26
|
7/0.16
|
0.23
|
1.00
|
>=65
|
0.38
|
6.80
|
150.00
|
|
24
|
11/0.16
|
0.23
|
1.10
|
>=65
|
0.38
|
7.10
|
94.20
|
|
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權歸穩暢電子制品有限公司所有
|

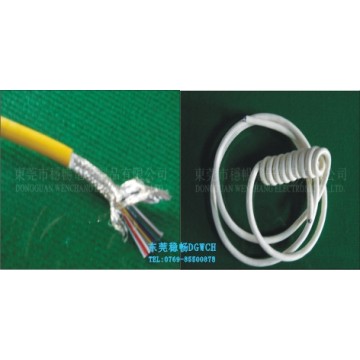

點擊圖片查看原圖
