Product Description:
|
|
■Tinned,annealed,stranded or solid copper conductor.
|
|
■Color-coded PVC insulation.
|
|
■Rated temperature: 105℃. Rated voltage: 600volts.
|
|
■Uniform thickness of wire to ensure easy stripping and cutting.
|
|
■Passes UL VW-1 & CSA FT1 vertical flamt test.
|
|
■Top coated conductor is avaiable.
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅.
|
|
■PVC絕緣
|
|
■額定溫度：80℃額定電壓：600Volts.
|
|
■使用標準厚度，易剝，截斷容易.
|
|
■可通過UL VW-1 及 CSA FT1 ，垂直燃燒測試.
|
|
■可使用先絞后鍍（TC）為導體.
|
|
Applications:
|
|
■For general purpose internal wiring of electronic and electrical equipment.
|
|
應用：
|
|
■用于電子、電器設備內部配線
|
|
UL Style& CSA Type
|
Conductor
導體
|
Insulation
Thickness
絕緣厚度
|
Overall
Diameter
完成外徑
|
Standard Put-up
標準長度
|
Conductor
Resistance at 20℃導體電阻
|
|
線號
|
線數/線徑
|
英制
|
公制
|
|
AWG
|
No/mm
|
mm
|
mm
|
Ft/coil
|
M/Coil
|
Ω/KM
|
UL1056
CSA
（Stranded)
絞線
|
20
|
21/0.178
|
1.524
|
4.00
|
1000
|
305
|
36.70
|
|
18
|
34/0.178
|
1.524
|
4.30
|
1000
|
305
|
23.20
|
|
16
|
26/0.25
|
1.524
|
4.50
|
1000
|
305
|
14.60
|
|
14
|
41/0.25
|
1.524
|
4.90
|
1000
|
305
|
8.96
|
|
12
|
65/0.25
|
1.524
|
5.40
|
1000
|
305
|
5.64
|
|
10
|
105/0.25
|
1.524
|
6.20
|
1000
|
305
|
3.55
|
UL1056
CSA
（Top-coated)
先絞后鍍
|
20
|
7/0.32
|
1.524
|
4.00
|
1000
|
305
|
37.10
|
|
18
|
7/0.4
|
1.524
|
4.30
|
1000
|
305
|
23.70
|
|
16
|
7/0.488
|
1.524
|
4.50
|
1000
|
305
|
14.20
|
UL1056
CSA
（Solid)
單股
|
22
|
1/0.634
|
1.524
|
3.70
|
1000
|
305
|
56.40
|
|
20
|
1/0.813
|
1.524
|
3.90
|
1000
|
305
|
35.20
|
|
18
|
1/1.024
|
1.524
|
4.10
|
1000
|
305
|
22.20
|
|
16
|
1/1.29
|
1.524
|
4.40
|
1000
|
305
|
14.00
|
|
以上線材數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權規穩暢電子制品有限公司所有
|

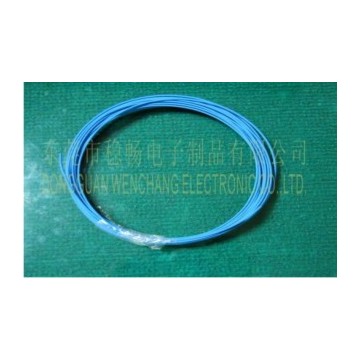

點擊圖片查看原圖
