Product Description:
|
|
■Tinned ,annealed,stranded or solid copper conductor.
|
|
■Color-coded PVC insulation，and pvc jacket.
|
|
■Rated temperature:80℃.Rated voltage:300volts
|
|
■Uniform thickness of wire to ensure easy stripping and cutting.
|
|
■Passes UL VW-1&CSA FT1 vertical flamt test
|
|
■Top coated conductor is avaiable
|
|
■Jacket thickness:from 5 to 40mils
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅
|
|
■PVC絕緣,PVC被覆。
|
|
■額定溫度：80℃額定電壓：300Volts
|
|
■使用標準厚度，易剝，截?cái)嗳菀住?/span>
|
|
■可通過UL VW-1 及 CSA FT1 ，垂直燃燒測試
|
|
■可使用先絞后鍍（TC）為導體
|
|
■被覆體厚度：5-40mils
|
|
Applications:
|
|
■Internal wiring of computers,office equipment and other electronic and electrical equipment.
|
|
應用：
|
|
■用于電腦、電子及電器設備內部配線
|
|
UL Style& CSA Type
|
Conductor
導體
|
Insulation
Thickness
絕緣厚度
|
Jacket
Thickness
絕緣厚度
|
Overall
Diameter
完成外徑
|
Standard Put-up
標準長度
|
Conductor
Resistance at 20℃導體電阻
|
|
線號
|
線數/線徑
|
英制
|
公制
|
|
AWG
|
No/mm
|
mm
|
mm
|
mm
|
Ft/coil
|
M/Coil
|
Ω/KM
|
UL1618
CSA AWM FT1 I A/B
（Stranded)
絞線
|
28
|
7/0.127
|
0.38
|
0.40
|
2.00
|
2000
|
610
|
239.00
|
|
26
|
7/0.16
|
0.38
|
0.40
|
2.10
|
2000
|
610
|
150.00
|
|
24
|
11/0.16
|
0.38
|
0.40
|
2.25
|
1000
|
305
|
94.20
|
|
22
|
17/0.16
|
0.38
|
0.40
|
2.45
|
1000
|
305
|
59.40
|
|
20
|
21/0.178
|
0.38
|
0.40
|
2.60
|
1000
|
305
|
36.70
|
|
18
|
34/0.178
|
0.38
|
0.40
|
2.90
|
1000
|
305
|
23.20
|
|
16
|
26/0.25
|
0.38
|
0.40
|
3.20
|
2000
|
610
|
14.60
|
UL1618
CSA AWM FT1 I A/B
（Top-coated)
先絞后鍍
|
26
|
7/0.16
|
0.38
|
0.40
|
2.10
|
2000
|
610
|
150.00
|
|
24
|
7/0.20
|
0.38
|
0.40
|
2.25
|
2000
|
610
|
88.70
|
|
22
|
7/0.254
|
0.38
|
0.40
|
2.45
|
1000
|
305
|
54.70
|
|
20
|
7/0.32
|
0.38
|
0.40
|
2.60
|
1000
|
305
|
37.10
|
UL1618
CSA AWM FT1 I A/B
（Solid)
單股
|
24
|
1/0.511
|
0.38
|
0.40
|
2.00
|
2000
|
610
|
89.30
|
|
22
|
1/0.634
|
0.38
|
0.40
|
2.15
|
1000
|
305
|
56.40
|
|
20
|
1/0.813
|
0.38
|
0.40
|
2.30
|
1000
|
305
|
35.20
|
|
18
|
1/1.024
|
0.38
|
0.40
|
2.50
|
1000
|
305
|
22.20
|
|
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權規穩暢電子制品有限公司所有
|

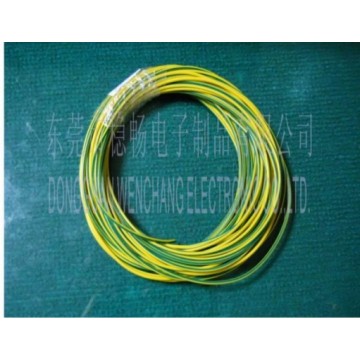

點擊圖片查看原圖
