| Product Description: | APPlications: | ||||||
| ■50AWG-10AWG Tinned ,annealed,stranded or | ■For Further Processing into Cables. | ||||||
| solid copper conductor. | |||||||
| ■PVC insulation. | 應用： | ||||||
| ■Rated temperature:105℃.Rated voltage:600volts | ■用于進一步處理成電纜。 | ||||||
| ■Uniform thickness of wire to ensure easy stripping and cutting. | |||||||
|
|||||||
| 說明： | |||||||
| ■導體使用50AWG至10AWG之間單股或絞線裸銅或鍍錫銅。 | |||||||
| ■PVC絕緣 | |||||||
| ■額定溫度：105℃額定電壓：600Volts | |||||||
| ■使用標準厚度，易剝，截?cái)嗳菀住? | |||||||
| ■可通過UL VW-1 及 CUL FT1 ，垂直燃燒測試 | |||||||
| UL Style& CUL Type |
Conductor 導體 |
Insulation Thickness 絕緣厚度 |
Overall Dimeter 完成外徑 |
Stand Put-up 標準長度 |
Conductor Resistance at 20℃導體電阻 |
||
| 線號 | 線數/線徑 | 英制 | 公制 | ||||
| AWG | No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM | |
| UL11325 | 30 | 7/0.10 | 0.23 | 0.80 | 2000 | 610 | 381.00 |
| 28 | 7/0.127 | 0.23 | 0.90 | 2000 | 610 | 239.00 | |
| 26 | 7/0.16 | 0.23 | 1.00 | 2000 | 610 | 150.00 | |
| 24 | 11/0.16 | 0.23 | 1.10 | 2000 | 610 | 94.20 | |
| 22 | 17/0.16 | 0.23 | 1.30 | 2000 | 610 | 59.40 | |
| 20 | 21/0.178 | 0.23 | 1.50 | 2000 | 610 | 36.70 | |
| 18 | 34/0.178 | 0.23 | 1.80 | 2000 | 610 | 23.20 | |
| 16 | 26/0.254 | 0.23 | 2.10 | 2000 | 610 | 14.60 | |
| 14 | 41/0.254 | 0.23 | 2.80 | 2000 | 610 | 8.96 | |
| 12 | 65/0.254 | 0.23 | 3.20 | 1000 | 305 | 5.64 | |
| 10 | 105/0.254 | 0.23 | 4.00 | 1000 | 305 | 3.54 | |
| UL11325 | 30 | 1/0.254 | 0.23 | 0.75 | 4000 | 1220 | 361.00 |
| 28 | 1/0.32 | 0.23 | 0.80 | 2000 | 610 | 227.00 | |
| 26 | 1/0.404 | 0.23 | 0.90 | 2000 | 610 | 143.00 | |
| 24 | 1/0.511 | 0.23 | 1.00 | 2000 | 610 | 89.30 | |
| 22 | 1/0.643 | 0.23 | 1.10 | 2000 | 610 | 56.40 | |
| 20 | 1/0.813 | 0.23 | 1.30 | 2000 | 610 | 35.20 | |
| 18 | 1/1.024 | 0.23 | 1.50 | 2000 | 610 | 22.20 | |
| 16 | 1/1.29 | 0.23 | 1.80 | 2000 | 610 | 14.00 | |
| 14 | 1/1.63 | 0.23 | 2.10 | 2000 | 610 | 8.78 | |
| 12 | 1/2.05 | 0.23 | 2.60 | 2000 | 610 | 5.53 | |
| 10 | 1/2.588 | 0.23 | 3.20 | 1000 | 305 | 3.47 | |

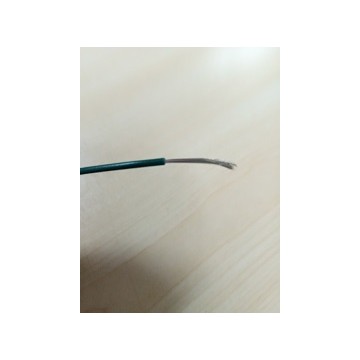

點擊圖片查看原圖
