Product Description:
|
|
■Tinned ,annealed,stranded or solid copper conductor.
|
|
■PE insulation
|
|
■Cores cabled under aluminum mylar shield
|
|
■Tinned stranded copper drain wire.
|
|
■FR-PE jacketed unpaired computer and data transmission cable.
|
|
■Rated temperature:80℃.Rated voltage:300Volts
|
|
■Passes UL VW-1&CUL FT1 vertical flamt test
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅。
|
|
■PE絕緣。
|
|
■芯線集絞后鋁箔麥拉帶隔離。
|
|
■鍍錫軟銅地線
|
|
■非對型電腦，資料傳輸電纜，F(xiàn)R-PE被覆。
|
|
■額定溫度：80℃額定電壓：300Volts
|
|
■可通過UL VW-1 及 CUL FT1 ，垂直燃燒測試
|
|
Applications:
|
|
■For wiring of lowenergy non-hazardous circuits in a/v Equipment.
|
|
應用：
|
|
■用于低壓的視聽設備內部連接。
|
|
UL Style& CUL Type
|
線號
|
Conductor
導體
|
Insulation
Thickness
絕緣厚度
|
Jacket Thickness
被覆厚度
|
Overall
Dimeter
完成外徑
|
靜電容量
|
Conductor
Resistance at 20℃導體電阻
|
|
線數/線徑
|
Cores
芯數
|
|
AWG
|
No/mm
|
mm
|
mm
|
mm
|
A
|
B
|
Ω/KM
|
UL21307
CUL AWM I/II A
（Stranded)
絞線
|
28
|
7/0.100
|
3
|
0.25
|
0.80
|
3.70
|
28
|
51
|
239.00
|
|
4
|
0.25
|
0.80
|
3.90
|
28
|
51
|
|
5
|
0.25
|
0.80
|
4.20
|
28
|
51
|
|
6
|
0.25
|
0.80
|
4.50
|
26
|
47
|
|
7
|
0.25
|
0.80
|
4.50
|
26
|
47
|
|
8
|
0.25
|
0.80
|
4.80
|
26
|
47
|
|
9
|
0.25
|
0.80
|
5.10
|
26
|
47
|
|
10
|
0.25
|
0.80
|
5.20
|
26
|
47
|
|
15
|
0.25
|
0.80
|
5.80
|
26
|
47
|
|
25
|
0.25
|
1.00
|
7.60
|
26
|
47
|
|
37
|
0.25
|
1.00
|
8.30
|
26
|
47
|
|
50
|
0.25
|
1.00
|
9.50
|
26
|
47
|
|
26
|
7/0.16
|
3
|
0.25
|
0.80
|
3.90
|
32
|
52
|
150.00
|
|
4
|
0.25
|
0.80
|
4.20
|
32
|
52
|
|
5
|
0.25
|
0.80
|
4.50
|
32
|
52
|
|
6
|
0.25
|
0.80
|
4.80
|
28
|
51
|
|
7
|
0.25
|
0.80
|
4.80
|
28
|
51
|
|
8
|
0.25
|
0.80
|
5.10
|
28
|
51
|
|
9
|
0.25
|
0.80
|
5.40
|
28
|
51
|
|
10
|
0.25
|
0.85
|
5.70
|
28
|
51
|
|
15
|
0.25
|
1.00
|
6.40
|
28
|
51
|
|
25
|
0.25
|
1.00
|
8.00
|
28
|
51
|
|
37
|
0.25
|
1.00
|
9.20
|
28
|
51
|
|
50
|
0.25
|
1.00
|
10.40
|
28
|
51
|
|
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權規穩暢電子制品有限公司所有
|

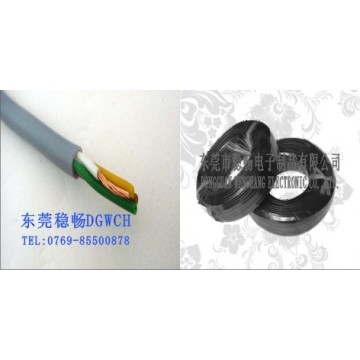

點擊圖片查看原圖
