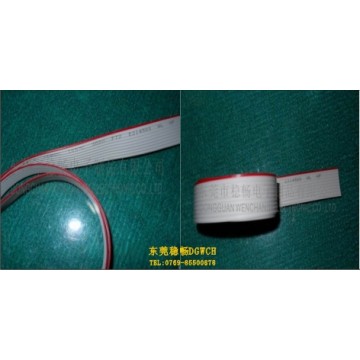

Product Description:
|
|
■Tinned ,annealed,stranded or solid copper conductor.
|
|
■Rated temperature:80℃
|
|
■Rated voltage:300Volts
|
|
■Passes UL VW-1&CUL FT1，F(xiàn)T2 vertical flame test
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅。
|
|
■額定溫度：80℃
|
|
■額定電壓：300Volts
|
|
■可通過UL VW-1 及 CUL FT1 FT2，垂直燃燒測試
|
|
APPlications:
|
|
■Internal wiring.
|
|
應用：
|
|
■用于電子設備內部布線
|
|
UL Style& CUL Type
|
Conductor
|
Pitch
|
Cores
|
Insulation Thickness
|
Overall
Diameter
|
Conductor
Resistance at 20℃
|
|
AWG
|
No.
|
mm
|
NO
|
mm
|
mm
|
Ω/KM
|
|
UL21458 CUL AWM I/A
|
24
|
7/0.20或
11/0.16
|
1.6或
1.5
|
2
|
0.38
|
1.5×4.7/4.5
|
94.20
|
|
11
|
1.5×17.5/16.5
|
|
12
|
1.5×19.1/18
|
|
UL21458 CUL AWM I/A
|
24
|
7/0.20
|
2.00
|
2
|
0.38
|
1.5×3.5
|
94.20
|
|
16
|
1.5×31.5
|
|
17
|
1.5×33.5
|
|
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權歸穩暢電子制品有限公司所有
|
