Product Description:
|
|
■Tinned, annealed, stranded or solid copper conductor.
|
|
■XL-PE insulation.
|
|
■Rated temperature: 150℃.
|
|
■Uniform thickness of wire to ensure easy stripping and cutting.
|
|
■Passes UL VW-1&CSA FT1 vertical flame test.
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅。
|
|
■無鹵照射環保PE絕緣。
|
|
■額定溫度：150℃
|
|
■使用標準厚度，易剝，截?cái)嗳菀住?/span>
|
|
■可通過ULVW-1及CUL FT1/FT2，垂直燃燒測試。
|
|
Applications:
|
|
■For general purpose internal wiring of electronic and electrical equipment.
|
|
應用：
|
|
■用于電子及電器設備內部配線。
|
UL Style
& CSA Type
|
Conductor
導體
|
Insulation
Thickness
絕緣厚度
|
Overall
Diameter
完成外徑
|
Standard Put-up
標準長度
|
Conductor
Resistance at 20℃導體電阻
|
|
線號
|
線數/線徑
|
英制
|
公制
|
|
AWG
|
No/mm
|
mm
|
mm
|
Ft/coil
|
M/Coil
|
Ω/KM
|
UL3495
CSA
（Stranded)
|
30
|
7/0.102
|
0.56
|
1.50
|
2000
|
610
|
381.00
|
|
28
|
7/0.127
|
0.56
|
1.60
|
2000
|
610
|
239.00
|
|
26
|
7/0.16
|
0.56
|
1.70
|
2000
|
610
|
150.00
|
|
24
|
11/0.16
|
0.56
|
1.80
|
2000
|
610
|
94.20
|
|
22
|
17/0.16
|
0.56
|
1.90
|
2000
|
610
|
59.40
|
|
20
|
21/0.178
|
0.56
|
2.10
|
2000
|
610
|
36.70
|
|
18
|
34/0.178
|
0.56
|
2.40
|
2000
|
610
|
23.20
|
|
16
|
26/0.25
|
0.56
|
2.60
|
2000
|
610
|
14.60
|
|
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權規穩暢電子制品有限公司所有
|

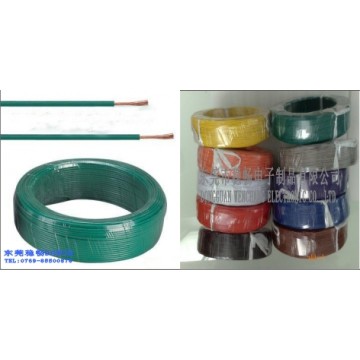

點擊圖片查看原圖
