| Product Description: | |||||||
| ■Tinned, annealed, stranded or solid copper conductor. | |||||||
| ■XL-PE insulation. | |||||||
| ■Rated temperature: 105℃. Rated voltage: 600/750volts. | |||||||
| ■Uniform thickness of wire to ensure easy stripping and cutting. | |||||||
| ■Passes UL VW-1&CSA FT1 vertical flame test. | |||||||
| 說明： | |||||||
| ■導體使用單股或絞線裸銅或鍍錫銅。 | |||||||
| ■無鹵照射環保PE絕緣。 | |||||||
| ■額定溫度：105℃ 額定電壓：600/750Volts。 | |||||||
| ■使用標準厚度，易剝，截?cái)嗳菀住?/span> | |||||||
| ■可通過ULVW-1及CUL FT1/FT2，垂直燃燒測試。 | |||||||
| Applications: | |||||||
| ■For general purpose internal wiring of electronic and electrical equipment. | |||||||
| 應用： | |||||||
| ■用于電子及電器設備內部配線。 | |||||||
|
UL Style & CSA Type |
Conductor 導體 |
Insulation Thickness 絕緣厚度 |
Overall Diameter 完成外徑 |
Standard Put-up 標準長度 |
Conductor Resistance at 20℃導體電阻 |
||
| 線號 | 線數/線徑 | 英制 | 公制 | ||||
| AWG | No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM | |
|
UL3652 CSA （Stranded) |
30 | 7/0.102 | 0.25 | 0.80 | 2000 | 610 | 381.00 |
| 28 | 7/0.127 | 0.25 | 0.90 | 2000 | 610 | 239.00 | |
| 26 | 7/0.16 | 0.25 | 1.00 | 2000 | 610 | 150.00 | |
| 24 | 11/0.16 | 0.25 | 1.10 | 2000 | 610 | 94.20 | |
| 22 | 17/0.16 | 0.25 | 1.25 | 2000 | 610 | 59.40 | |
| 20 | 21/0.178 | 0.25 | 1.45 | 2000 | 610 | 36.70 | |
| 18 | 34/0.178 | 0.25 | 1.70 | 2000 | 610 | 23.20 | |
| 16 | 26/0.25 | 0.25 | 2.00 | 2000 | 610 | 14.60 | |
| 以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權規穩暢電子制品有限公司所有 | |||||||

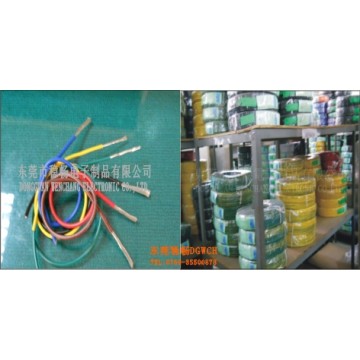

點擊圖片查看原圖
